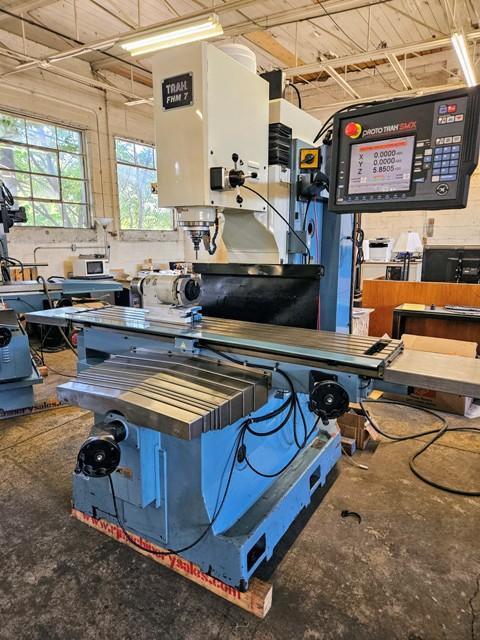

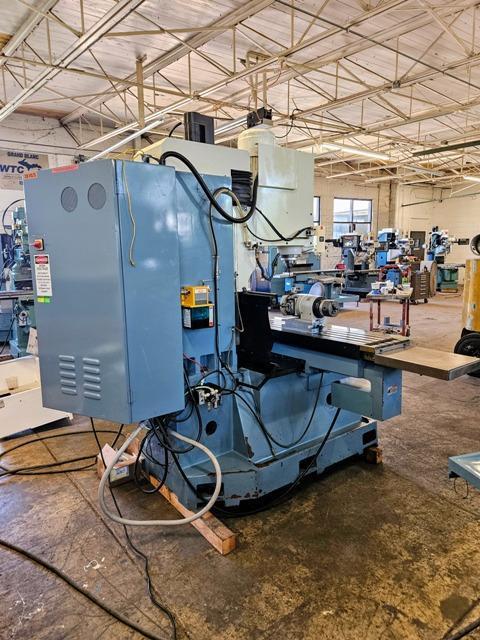

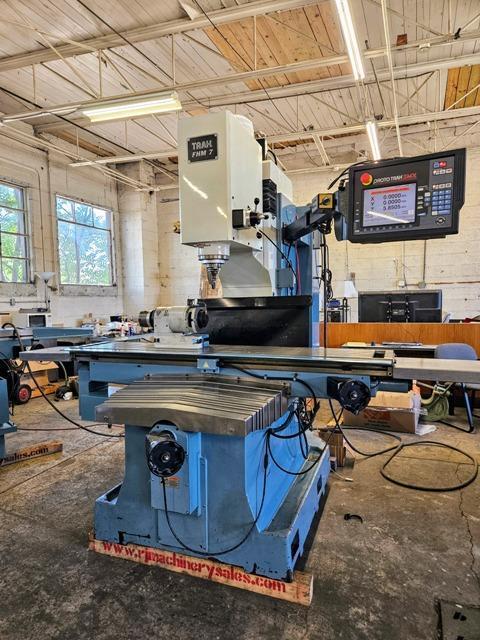

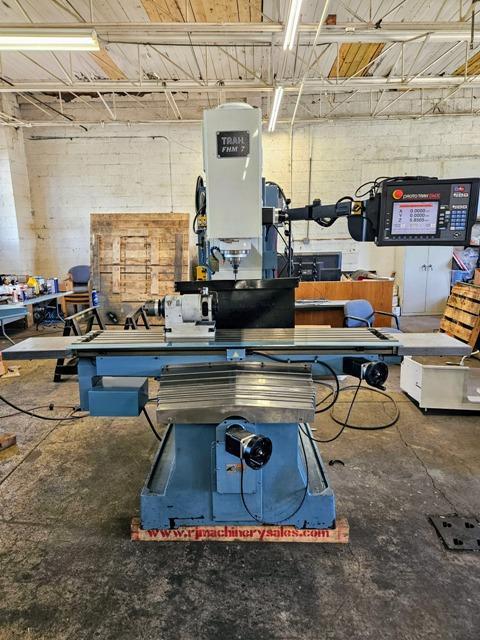

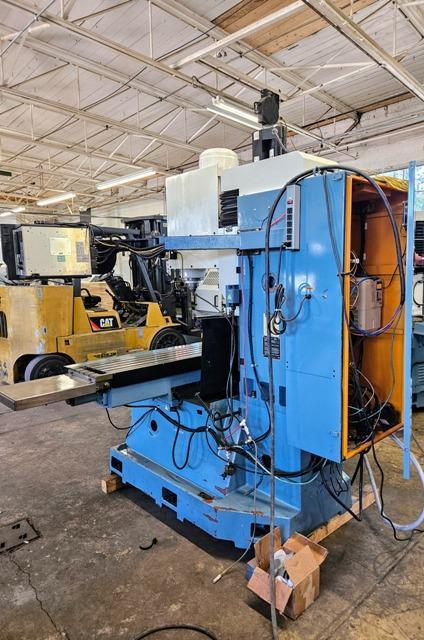

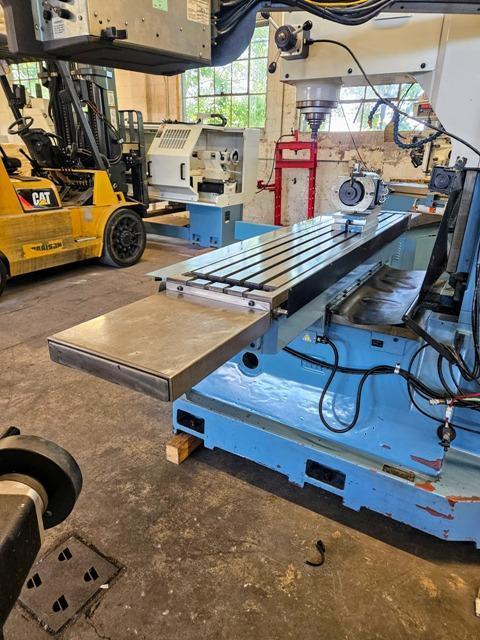

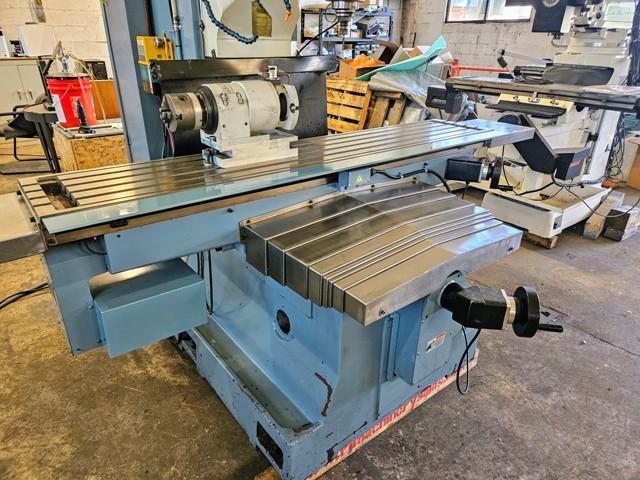

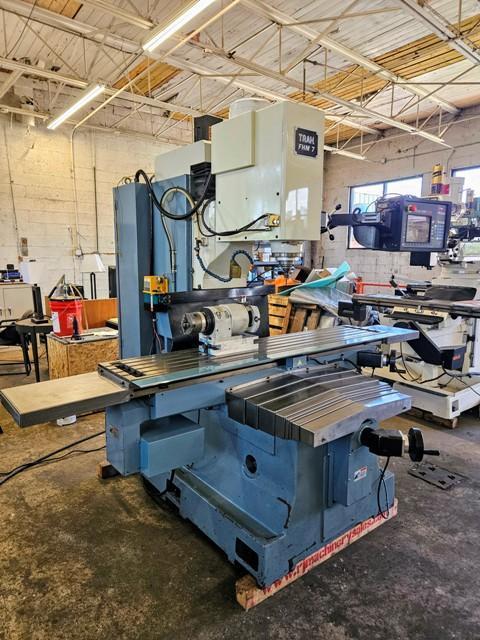

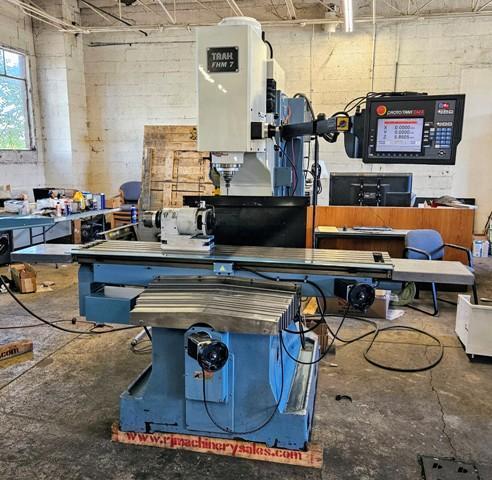

Southwestern Industries Trak FHMSX-7 (2010)

Model
Trak FHMSX 7

Year
2010

Stock #
104296

Condition
Used

Specifications

Equipped With

https://youtu.be/AFxHciqQxAU?si=GECnbAZqzay3UYso


Specifications

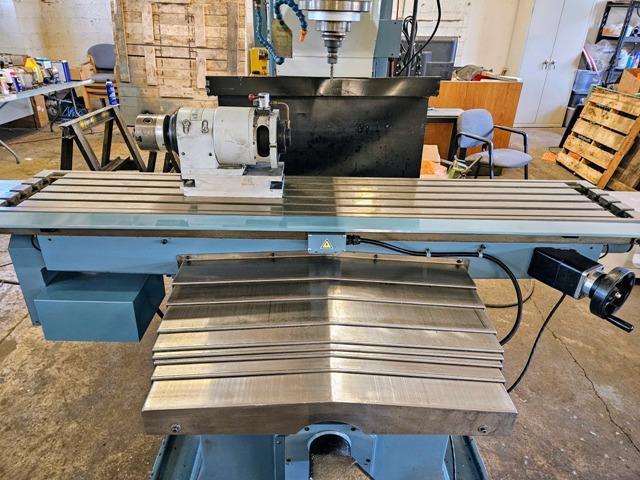

Table Size: 76" x 14"
T- Slots:  4 x 16mm x 63.5mm
Travel X: 60"
Travel Y:  23"
Travel Z: 20.5"
Quill Diameter:  5.06"
Spindle Taper:  40
Spindle Speed Range:  200-5000 RPM
Spindle Center to Column Face:  23"
Spindle Motor Power:  7.5 HP
Power Requirement, Control:  110V, 1P, 15A
Power Requirement, Machine: 220V, 3P, 60HZ Current,
Full Load Amps:   37.5 FLA
Maximum Weight of Workpiece:  2200 lbs.
Height of Table from Bottom of Bed:  38.25"
Maximum Spindle Nose to Table:   21.5"
Way Surface:   Dovetail X axis
Way Surface:   Square Ways Y and Z axis
Drilling Max Capacity:  1" dia.
Tapping Max Capacity:  5/8"
Milling Max Capacity:  7" 3"/min
Automatic lubrication pump
Auxiliary function hardware
Limit switches

Equipped With
Prototrak SMX CNC Control
Programmable E Head
Power Draw Bar
Advanced Features
Networking
Traking/E Hanwheels
