Specifications:
Table Size.............................................49" x 9"
X-Axis.................................................32
Y-Axis.................................................16 Z
-Axis.................................................27
Quill Diameter.........................................3 3/8"
Maximum Quill Travel...................................5"
Spindle Taper..........................................R8
Spindle Speed Range RPM -
Varispeed drive..............70-4200
Spindle Center to Column Face..........................18"
Spindle Motor Power - vari-speed head..................3 HP
Power requirements,
control............................110V; 1P; 8A
Power requirements, machine with vari-speed head.......220/440;3P; 8.5/4.25A
Maximum Weight of Workpiece............................1320 lbs.
Height of table from bottom of bed.....................33"
Max spindle nose to table..............................27"
Min height.............................................90"
Max height.............................................98"
Width of machine including table.......................70"
Length with electric box door closed...................64"
Overall width incl full table traverse.................104"
Overall length with electrical door open...............72"
Footprint of Machine...................................23 x 40"
Weight net / shipping lbs..............................3200 / 3500
Rapid traverse X, Y, Z.................................150 IPM
Drilling max capacity, Varispeed head..................1" dia
Milling max capacity, Varispeed head...................2 inch3/min
Tapping max capacity, Varispeed head...................0.75"
Equipped with:

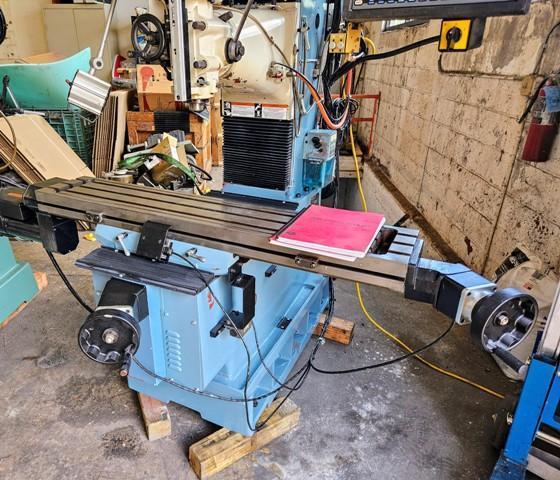

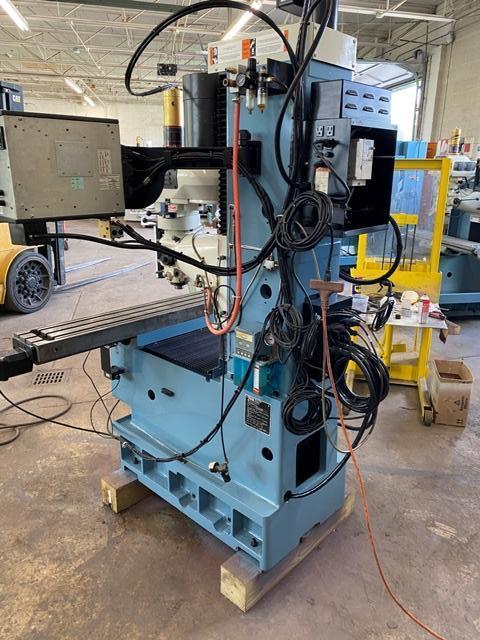

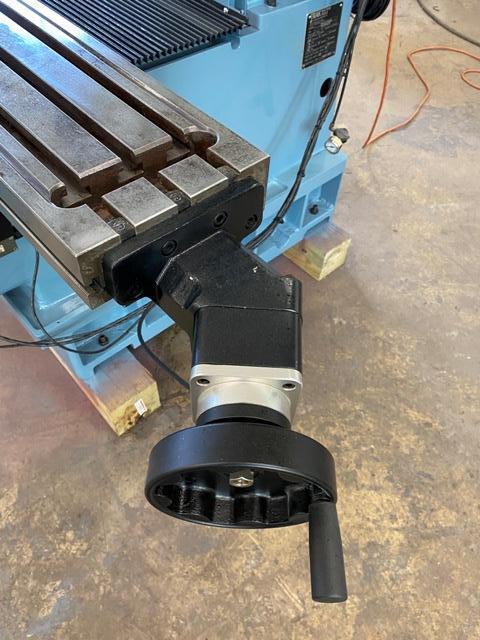

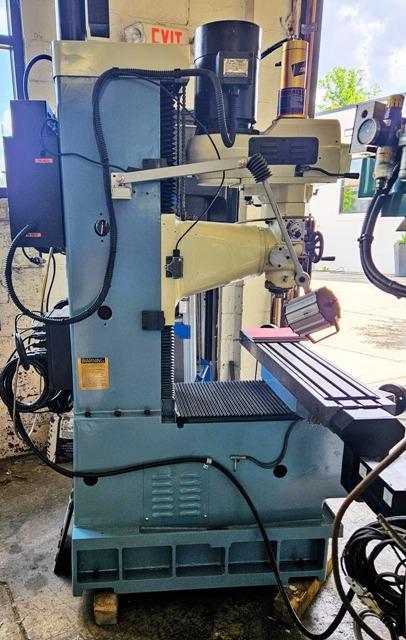

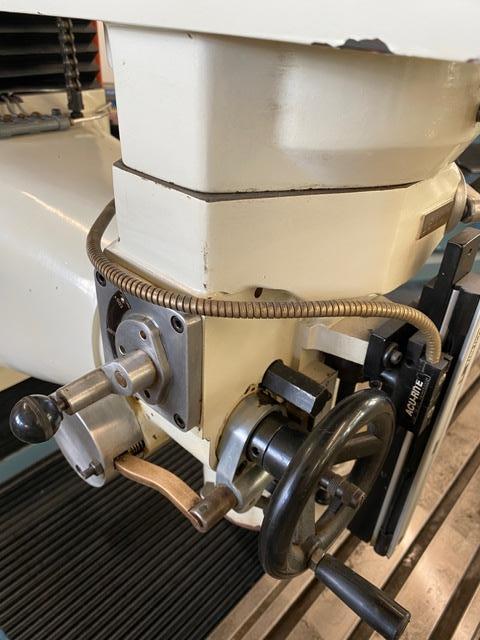

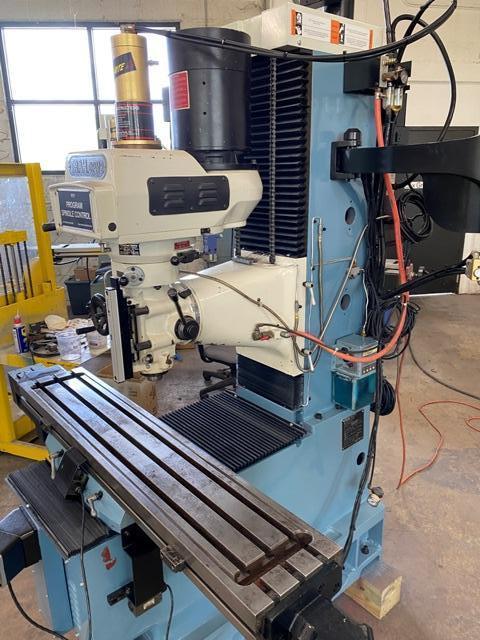

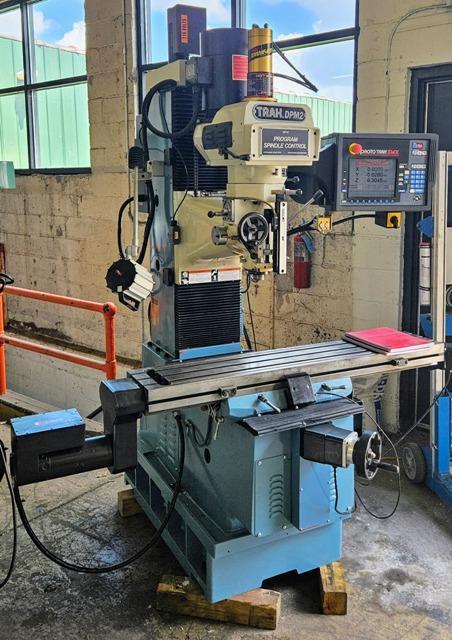

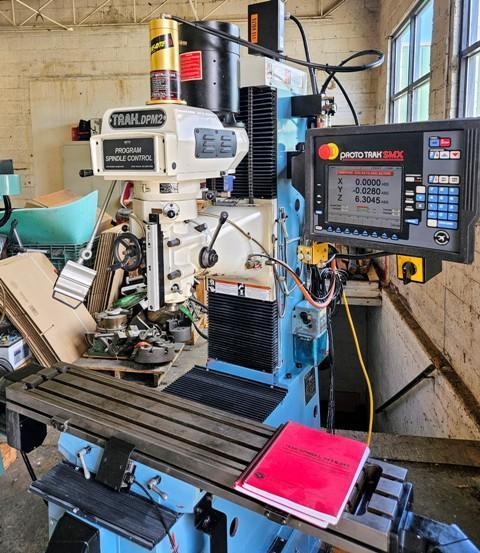

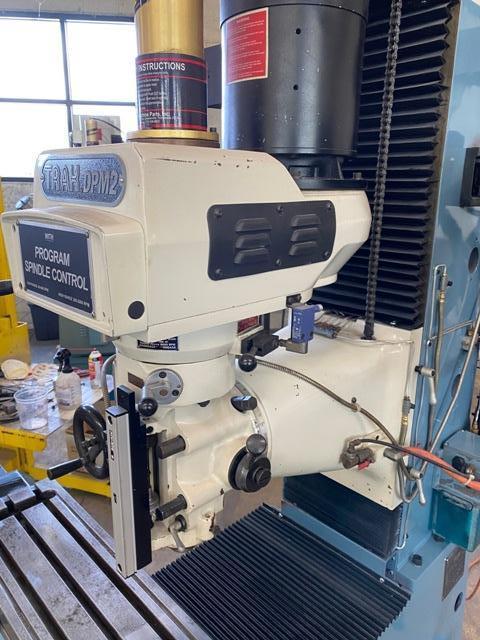

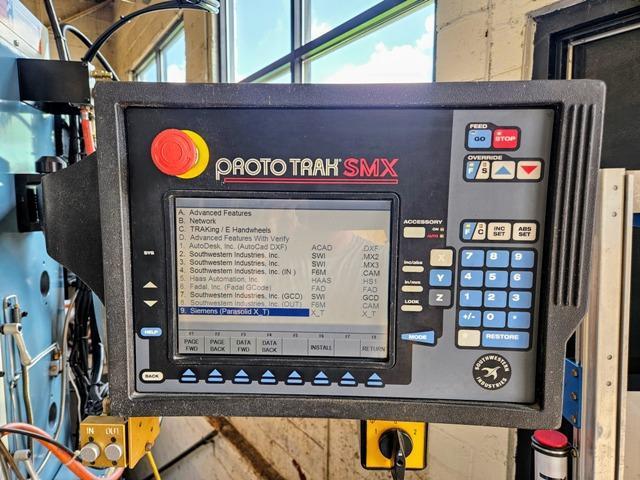

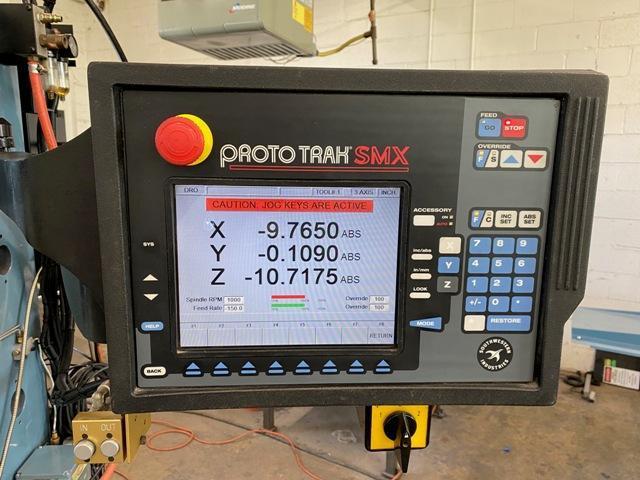

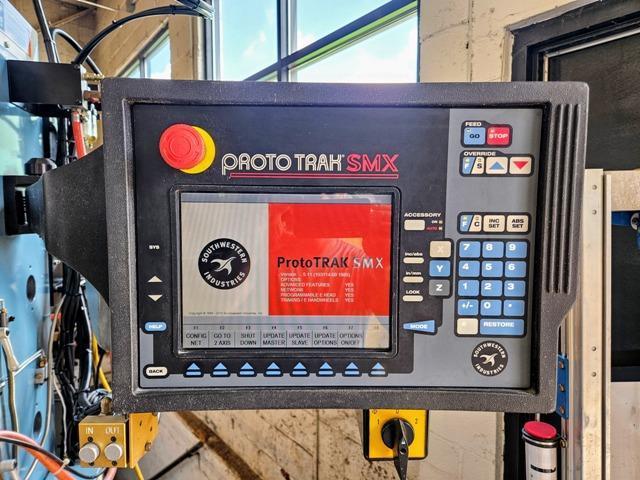

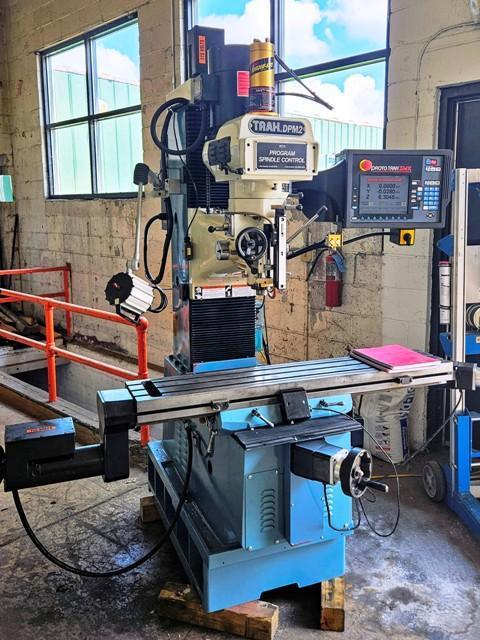

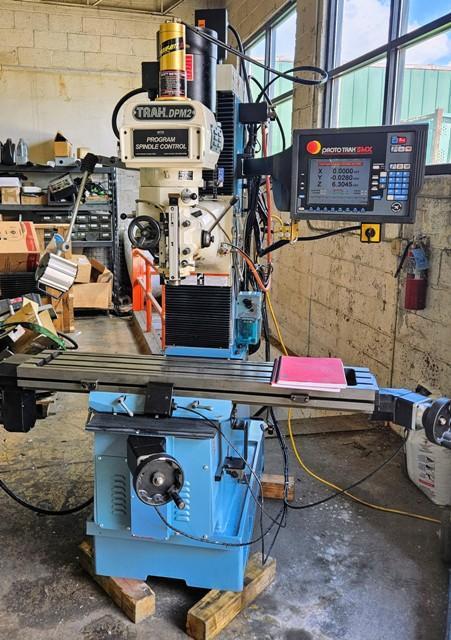

Prototrak SMX Control

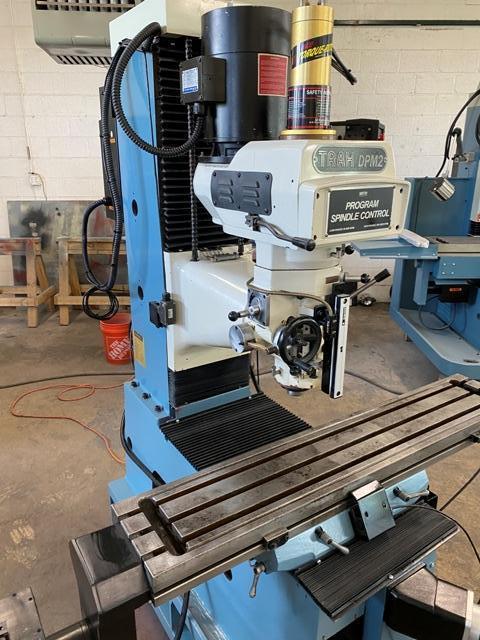

Power Draw Bar

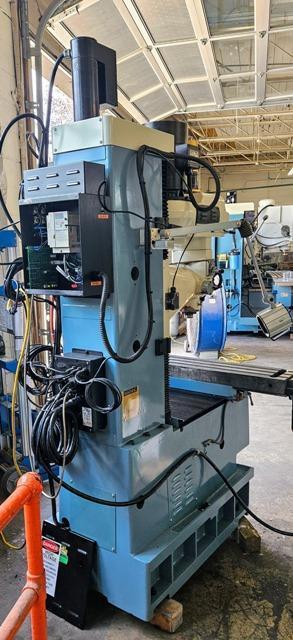

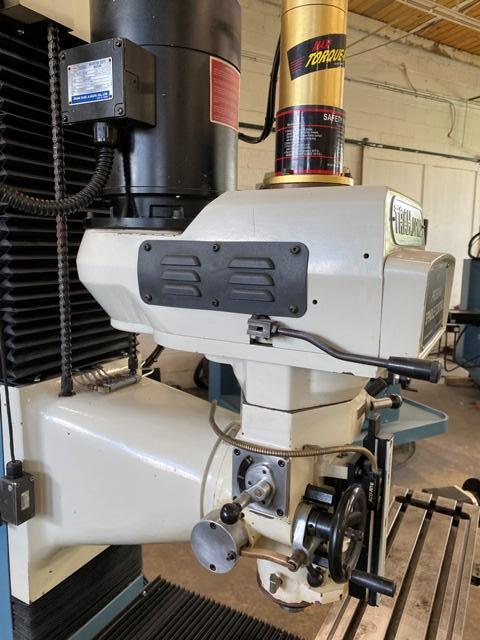

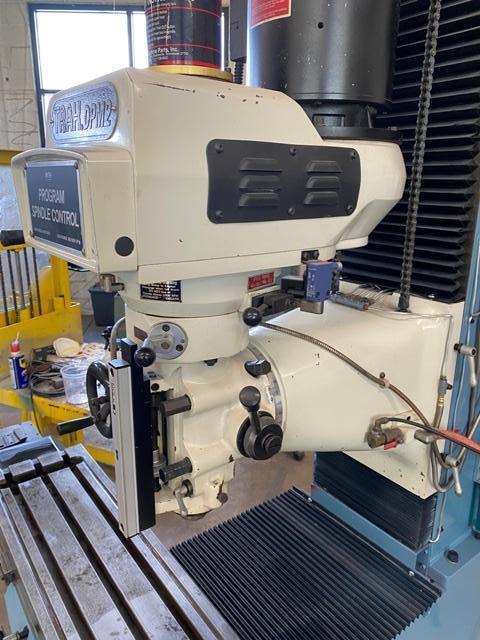

Programmable Spindle
